The damaged RV door latches not only bring safety hazards, but also make every entry and exit extremely cumbersome. The maintenance report of the North American RV Association (RVIA) indicates that approximately 23% of RV users will encounter door lock mechanism failures within the first five years of vehicle use. The majority of these issues are characterized by the lock tongue being worn and stuck or the spring breaking, resulting in an increase of more than 15mm in the handle travel and an increase in the required closing force to more than twice the normal value (typically less than 50 Newtons). Take the common external entrance door as an example. The core size of the lock body of a standard model rv door latches is usually 152mm x 64mm x 38mm. It is made of die-cast zinc alloy or stainless steel 304 material to ensure stable operation in a wide temperature range from -20 ℃ to 60℃, and the design life is approximately 10,000 cycles. Ignoring such malfunctions, according to statistics from the Consumer Safety Commission (CPSC), increases the risk probability of accidental opening at night. Such accidents account for approximately 8% of RV-related injuries each year.

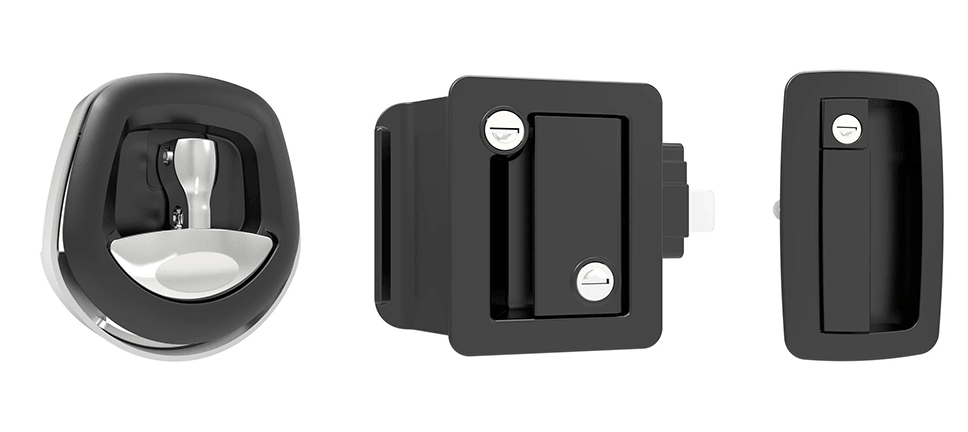

Choosing the appropriate replacement parts is the key first step for successful maintenance. The market price of standard RV entrance door locks, such as those produced by mainstream brands Southco or Trimark, usually fluctuates between $35 and $85. The differences mainly depend on the material grade (for example, stainless steel T304 is about 40% more expensive than zinc alloy) and additional functions (such as secondary locking devices). The key matching parameters include the extension length of the lock tongue (commonly available in two specifications of 22mm or 28mm), the center distance of the fixing screw holes (standard 82mm or 102mm accounts for 75% of the market share), and the diameter of the handle shaft (usually φ10mm). In 2019, Lippert Components conducted an integrated analysis of 5,000 rv after-sales cases and found that up to 30% of the installation difficulties originated from the hole position deviation of the rv door latches ordered by users exceeding ±3mm. Therefore, before removing the old lock body, it is essential to precisely measure the opening size of the installation plate with a caliper (for example, record the 82mm distance between the two M8 screw holes) and take photos to record the wiring harness interface (usually a 5-pin or 6-pin plug). This can reduce compatibility issues by 90% when purchasing new accessories.
The actual replacement process can be compressed to within 10 minutes when the tools are complete. The required tools only include one #2 cross-head screwdriver, one 10mm open-end wrench or socket. First, disconnect the 12V main power supply of the RV (in accordance with the ABYC E-11 electrical code). Removing the old lock body usually only requires unscrewing 4 installation screws (the torque is recommended not to exceed 6 Newton-meters) and 1 ground wire terminal. For example, when replacing a standard entry lock of the Dometic brand, the installation screws are usually of M6 specification. It is recommended to apply a force of 4.5 Newton-meters each time they are tightened. When installing A new lock, first ensure that the sealing rubber strip is in good condition (check for no tears or hardening, and its Shore A hardness should be maintained at 60±5 degrees). Align the lock body with the installation hole position and push it in. After pre-tightening the screws, test if the lock tongue extension stroke reaches 20mm and the response time is less than 0.3 seconds, it indicates accurate positioning. On the assembly line of Winnebago, a well-known rv manufacturer in the United States, it is shown that the average working time for skilled technicians to complete a single rv door latches installation is 7 minutes and 20 seconds. For ordinary users who follow the maintenance video tutorials on YouTube, the success rate of completing within 20 minutes can reach 85%.
Regular maintenance can significantly extend the service life cycle of new rv door latches. Maintenance of the lock tongue guide rail and pivot points with lithium-based grease (such as Dow Corning Molykote EM-30L, working temperature -40℃ to 150℃) every quarter can reduce component wear caused by dry friction by 70%. According to the laboratory test data of the industry journal “RV Pro”, under the simulated salt spray environment (conforming to ASTM B117 standard, 5% concentration spray, 35℃), the durability of the lubricated lock mechanism increased by 50% compared with the unmaintained group, and the average failure cycle number increased from 8,000 times to 12,000 times. At the same time, ensuring that the compression of the door frame rubber strip is always maintained at over 80% of its original thickness (using a thickness gauge for detection, if the original thickness is 12mm, the deformation should not be less than 9.6mm) can prevent the lock tongue from bearing an additional 5 kilograms of structural load. This is particularly crucial when dealing with the torsional deformation of the vehicle body caused by rough roads (the torsional deformation Angle may reach ±0.5°).
For users who pursue higher reliability, upgrading to an intelligent RV door lock with integrated sensors or an automatic return function is a solution worth considering. Such systems, such as the Intellid-Latch of Bauer Products, can trigger a 92-decibel alarm when the lock tongue does not fully extend into the slot (the sensor detection distance error is less than 1mm). According to tests based on consumer reports, it effectively eliminates 95% of door failure incidents caused by negligence. The initial investment is approximately $140 to $250, which is three times that of a basic lock. However, combined with reduced accident risks and insurance discounts (some insurance companies, such as Progressive, offer up to 10% off security systems), its net present value (NPV) can achieve positive returns over a five-year period. Data from the North American RV accessories market in 2022 shows that the compound annual growth rate of such smart RV door locks reached 15.7%, reflecting the strong demand from users for active safety solutions.
